DC-DC converter 评估板
可以下载评估板的电路图，组件信息，典型特性数据,设计信息和用户指南。 还安装了外围部件，可立即使用,减少您的开发工时。
| Type | Part No. | Image | IC | Board size X/Y [mm] |
Vin [V] | Vout [V] |
Iout [A] |
User's Guide | 购买 |
|---|---|---|---|---|---|---|---|---|---|

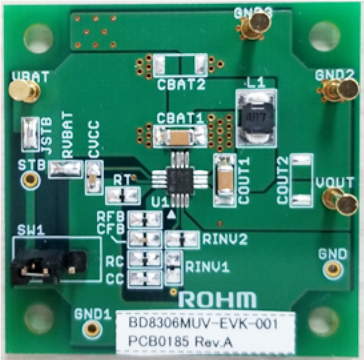

| Buck-Boost DC-DC Converter | BD8306MUV-EVK-001 |  |
BD8306MUV | 40 / 40 | 2.8 – 5.5 | 3.3 | 1.0 | User's Guide | 请咨询 |

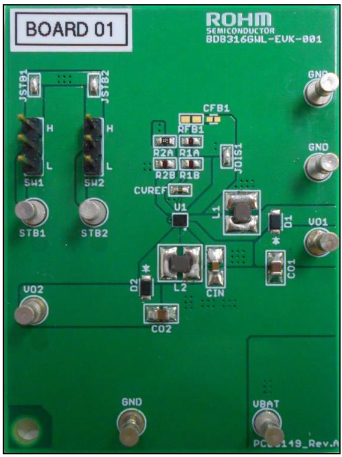

| Boost / Invert DC-DC Converter | BD8316GWL-EVK-001 |  |
BD8316GWL | 45 / 60 | 2.5 – 4.5 | +5.6/-5.6 | -0.2/+0.2 | User's Guide | 请咨询 |

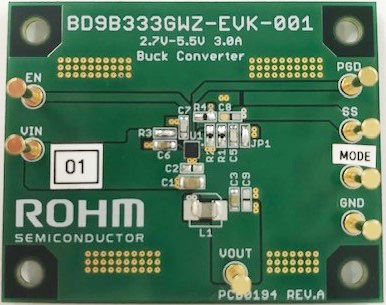

| Buck DC-DC Converter | BD9B333GWZ-EVK-001 |  |
BD9B333GWZ | 50 / 40 | 2.7 – 5.5 | 0.9 | 3.0 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9G102G-EVK-001 |  |
BD9G102G-LB | 50 / 50 | 8 – 42 | 5.0 | 0.5 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9G201EFJ-EVK-001 |  |
BD9G201EFJ-M | 80 / 70 | 10 – 42 | 5.0 | 1.5 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD70522-EVK-101 |  |
BD70522GUL | 50 / 50 | 2.5 – 5.5 | selectable 1.2/ 1.5/ 1.8/ 2.0/ 2.5/ 2.8/ 3.0/ 3.2/ 3.3 |
0.01 | User's Guide | 请咨询 |

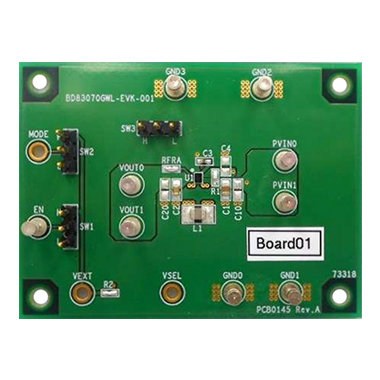

| Buck-Boost DC-DC Converter | BD83070GWL-EVK-001 |  |
BD83070GWL | 60 / 45 | 2.0 – 5.5 | 2.5 / 3.3 | 1.0 |
|
|

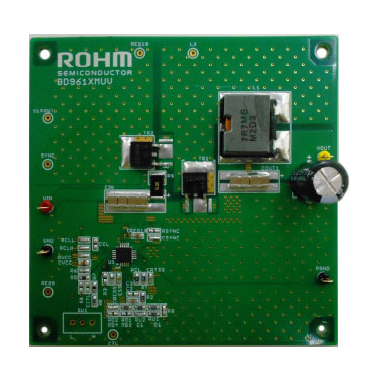

| Buck DC-DC Converter Controller | BD9611MUV-EVK-001 |  |
BD9611MUV | 80 / 80 | 15 - 36 | 12 | 10.0 | User's Guide | 请咨询 |

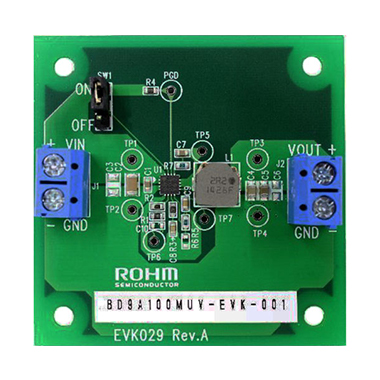

| Buck DC-DC Converter | BD9A100MUV-EVK-001 |  |
BD9A100MUV | 50 / 50 | 2.7 – 5.5 | 1.8 | 1.0 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9A101MUV-EVK-001 |  |
BD9A101MUV-LB | 50 / 50 | 2.7 – 5.5 | 1.8 | 1.0 | User's Guide | 请咨询 |

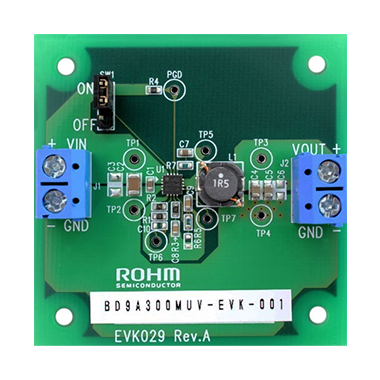

| Buck DC-DC Converter | BD9A300MUV-EVK-001 |  |
BD9A300MUV | 50 / 50 | 2.7 – 5.5 | 1.8 | 3.0 | User's Guide | 请咨询 |

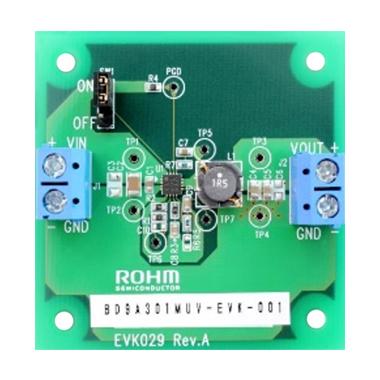

| Buck DC-DC Converter | BD9A301MUV-EVK-001 |  |
BD9A301MUV-LB | 50 / 50 | 2.7 – 5.5 | 1.8 | 3.0 | User's Guide | 请咨询 |

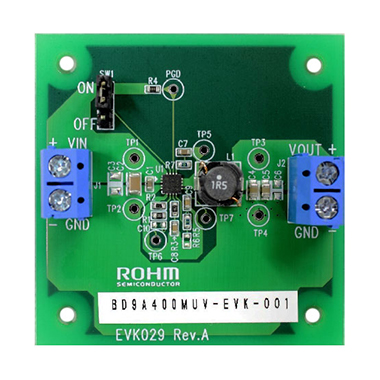

| Buck DC-DC Converter | BD9A400MUV-EVK-001 |  |
BD9A400MUV | 50 / 50 | 2.7 – 5.5 | 1.8 | 4.0 | User's Guide | 请咨询 |

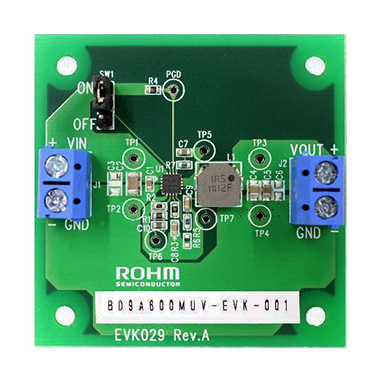

| Buck DC-DC Converter | BD9A600MUV-EVK-001 |  |
BD9A600MUV | 50 / 50 | 2.7 – 5.5 | 1.8 | 6.0 | User's Guide | 请咨询 |

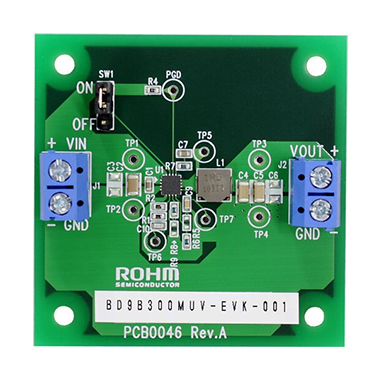

| Buck DC-DC Converter | BD9B300MUV-EVK-001 |  |
BD9B300MUV | 50 / 50 | 2.7 – 5.5 | 1.2 | 3.0 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9B300MUV-EVK-101 |  |
BD9B300MUV | 55 / 37.47 | 2.7 – 5.5 | 3.3 | 3.0 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9B301MUV-EVK-101 |  |
BD9B301MUV-LB | 55 / 37.47 | 2.7 – 5.5 | 3.3 | 3.0 | User's Guide | 请咨询 |

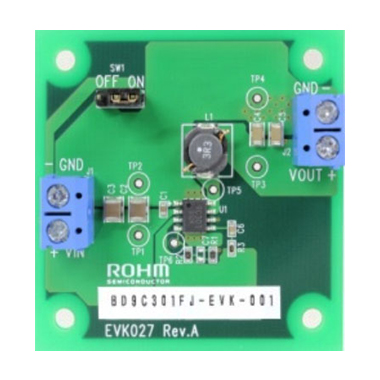

| Buck DC-DC Converter | BD9C301FJ-EVK-001 |  |
BD9C301FJ-LB | 50 / 50 | 4.5 – 18 | 3.3 | 3.0 | User's Guide | 请咨询 |
| BD9C301FJ | User's Guide | 请咨询 | |||||||

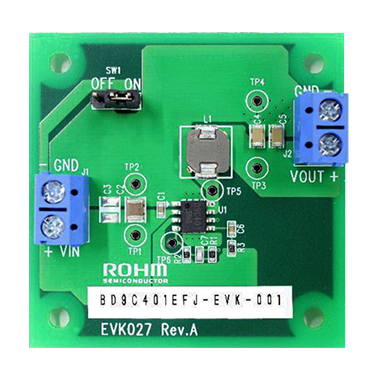

| Buck DC-DC Converter | BD9C401EFJ-EVK-001 |  |
BD9C401EFJ | 50 / 50 | 4.5 – 18 | 3.3 | 4.0 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9C501EFJ-EVK-001 |  |
BD9C501EFJ | 50 / 50 | 4.5 – 18 | 3.3 | 5.0 | User's Guide | 请咨询 |

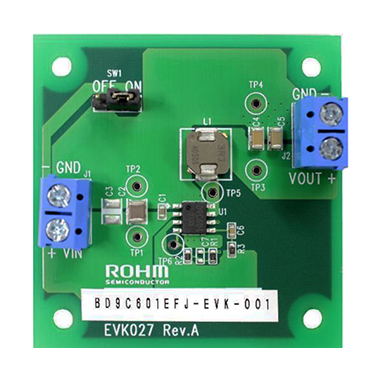

| Buck DC-DC Converter | BD9C601EFJ-EVK-001 |  |
BD9C601EFJ | 50 / 50 | 4.5 – 18 | 5.0 | 6.0 | User's Guide | 请咨询 |

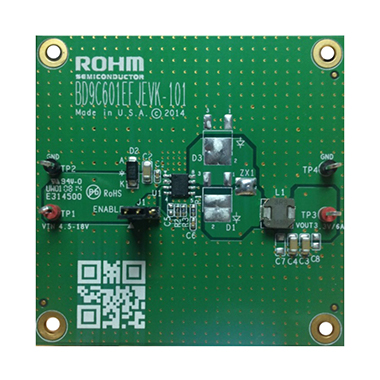

| Buck DC-DC Converter | BD9C601EFJ-EVK-101 |  |
BD9C601EFJ | 70 / 70 | 4.5 – 18 | 3.3 | 6.0 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9D320EFJ-EVK-001 |  |
BD9D320EFJ | 50 / 50 | 4.5 – 18 | 3.3 | 3.0 | User's Guide | 请咨询 |

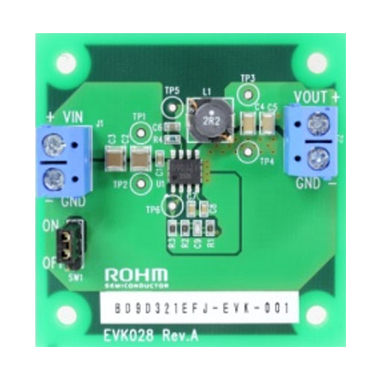

| Buck DC-DC Converter | BD9D321EFJ-EVK-001 |  |
BD9D321EFJ | 50 / 50 | 4.5 – 18 | 3.3 | 3.0 | User's Guide | 请咨询 |

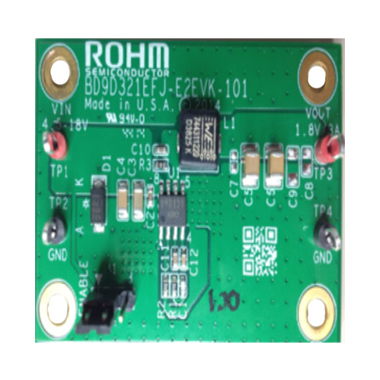

| Buck DC-DC Converter | BD9D321EFJ-EVK-101 |  |
BD9D321EFJ | 55 / 37.47 | 4.5 – 18 | 1.8 | 3.0 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9E100FJ-EVK-001 |  |
BD9E100FJ-LB | 50 / 50 | 7.0 – 36 | 5.0 | 1.0 | User's Guide | 请咨询 |

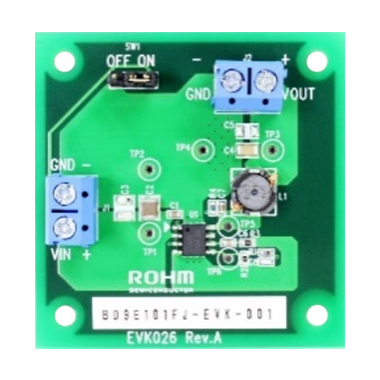

| Buck DC-DC Converter | BD9E101FJ-EVK-001 |  |
BD9E101FJ-LB | 50 / 50 | 7.0 – 36 | 5.0 | 1.0 | User's Guide | 请咨询 |

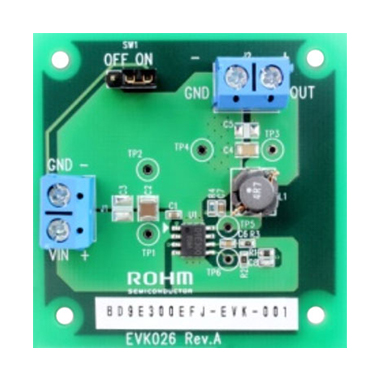

| Buck DC-DC Converter | BD9E300EFJ-EVK-001 |  |
BD9E300EFJ-LB | 50 / 50 | 7.0 – 36 | 5.0 | 2.5 | User's Guide | 请咨询 |

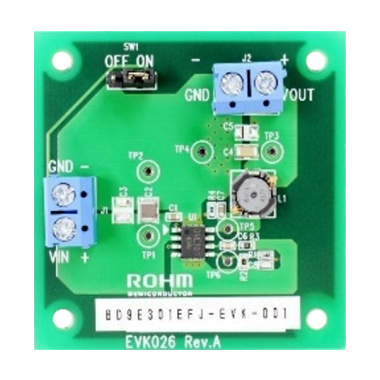

| Buck DC-DC Converter | BD9E301EFJ-EVK-001 |  |
BD9E301EFJ-LB | 50 / 50 | 7.0 – 36 | 5.0 | 2.5 | User's Guide | 请咨询 |

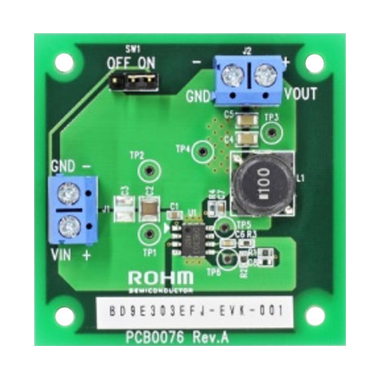

| Buck DC-DC Converter | BD9E303EFJ-EVK-001 |  |
BD9E303EFJ-LB | 50 / 50 | 7.0 – 36 | 5.0 | 3.0 | User's Guide | 请咨询 |

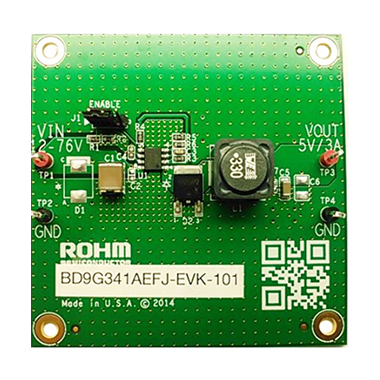

| Buck DC-DC Converter | BD9G341AEFJ-EVK-101 |  |
BD9G341AEFJ-LB | 70 / 70 | 12 – 76 | 5.0 | 3.0 | User's Guide | 请咨询 |
| BD9G341AEFJ | User's Guide | 请咨询 | |||||||
| Buck DC-DC Converter | BD9G401EFJ-EVK-001 |  |
BD9G401EFJ-M | 80 / 70 | 10 – 42 | 5.0 | 3.5 | User's Guide | 请咨询 |
| Buck DC-DC Converter | BD9V101MUF-EVK-001 |  |
BD9V101MUF-LB | 100 / 80 | 16 – 60 | 5.0 | 1.0 | User's Guide | 请咨询 |
| Boost DC-DC Converter | BU33UV7NUX-EVK-101 |  |
BU33UV7NUX | 60 / 60 | 0.6 – 4.5 | 3.3 | 0.05/0.5 | User's Guide | 请咨询 |
