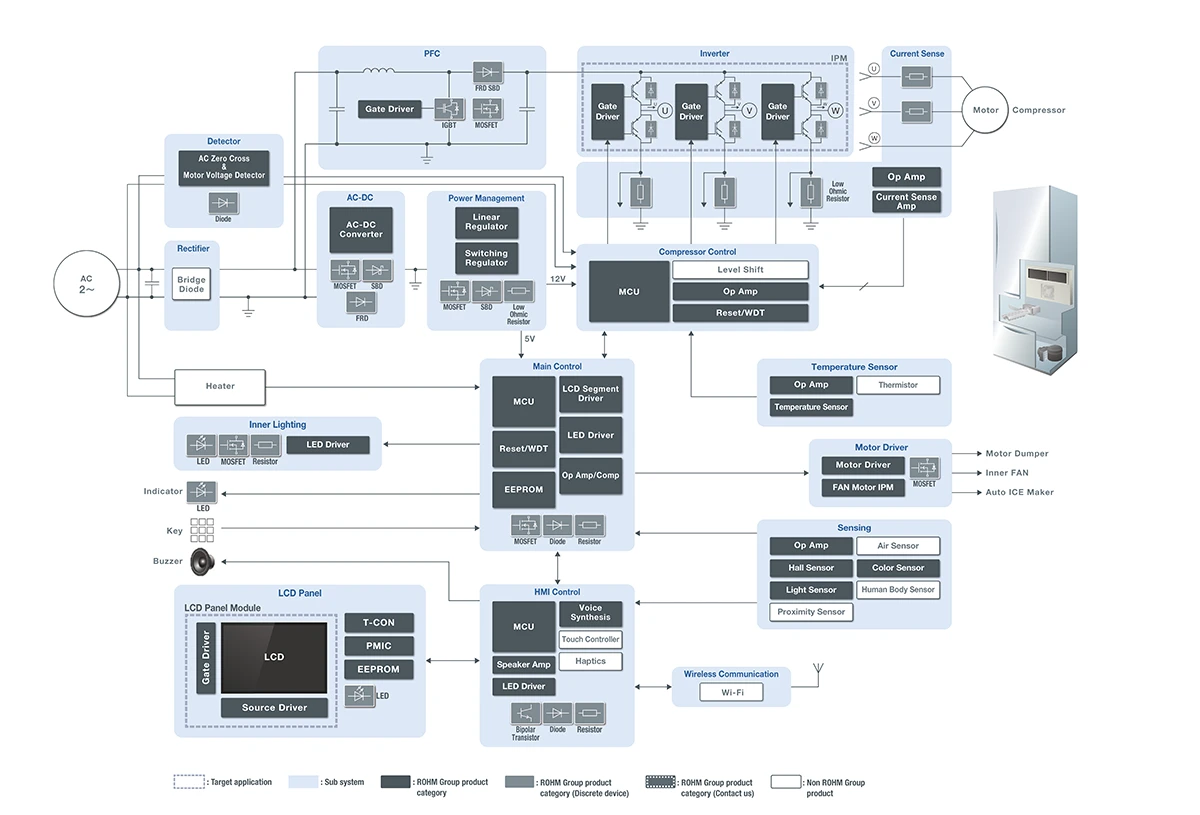

Block Diagram - 冰箱(High End)

Block Diagram

*Click to enlarge image.

Isolated AC/DC
Inner Lighting
Power Management
Main Control
Inverter
Current Sense
Compressor Control
Temperture Sensor
Motor Drive
Sensing
LCD Panel
HMI Contorl

Block Diagram - 冰箱(Low End)

Block Diagram

*Click to enlarge image.

Isolated AC/DC
Inner Lighting
Power Management
Main Control
Inverter
Current Sense
Compressor Control
Temperture Sensor
Motor Drive
Sensing
