REFLD002
REFLD002 - Reference Design
适用于LiDAR的大功率激光二极管高速驱动EcoGaN™和高速栅极驱动器参考设计
LiDAR传感器不仅适用于车辆的自动驾驶应用，还适用于工业和基础设施领域的众多应用。LiDAR传感器需要具备更远的感测距离和高分辨率，不仅要提高激光二极管的特性，还需要以更快的速度和更高的功率驱动激光二极管。ROHM拥有905nm脉冲的高功率窄线宽激光二极管产品群（RLD90QZWx系列）。另外，ROHM还提供包括可高速驱动的下一代GaN器件“EcoGaN™”和用于GaN HEMT的高速栅极驱动器在内的参考设计，这将非常有助于提高LiDAR传感器的特性（距离、分辨率）。
- Enables high-speed driving of laser diodes - a key device in LiDAR applications
- Includes next-gen EcoGaN™ devices
- Built-in high-speed gate driver for GaN HEMTs (BD2311NVX-C)
- Two circuit types: square wave and resonant
Specification
| Onboard Devices | Laser Diode | RLD90QZW8 | RLD90QZW3 |
| EcoGaN™ | GNE1040TB | ||
| Gate Driver | BD2311NVX-LB | ||
| Reverse Current Protection Diode | RF05VAM2S | ||
| Shunt Resistor | LTR10 Series | ||
REFLD002-1 Square wave Product in refDesign and related contents
| Product name | Status | Datasheet | Specification | Sample |
|---|---|---|---|---|
| RLD90QZW8 | under development |  |
905nm 120W Narrow Emission Width Laser Diode | Contact Us |
| GNE1040TB | Recommended Products | |
EcoGaN™ GaN HEMT 150V, 40mΩ | Contact Us |
| BD2311NVX-LB | Recommended Products | |
GaN HEMT High-Speed Driver IC | Buy |
| RF05VAM2S | Recommended Products | |
Reverse Current Protection Fast Recovery Diode | Buy |
| LTR10 | Recommended Products | |
Current Sense Shunt Resistor | Buy |
REFLD002-2 Resonant Product in refDesign and related contents
| Product name | Status | Datasheet | Specification | Sample |
|---|---|---|---|---|
| RLD90QZW3 | Recommended Products | |
905nm 75W Narrow Emission Width Laser Diode | Buy |
| GNE1040TB | Recommended Products | |
EcoGaN™ GaN HEMT 150V, 40mΩ | Contact Us |
| BD2311NVX-LB | Recommended Products | |
GaN HEMT High-Speed Driver IC | Buy |
| RF05VAM2S | Recommended Products | |
Reverse Current Protection Fast Recovery Diode | Buy |
| LTR10 | Recommended Products | |
Current Sense Shunt Resistor | Buy |
*Application notes, model libraries, PCB libraries, and other contents can be downloaded from the individual product pages
Design Resources
- REFLD002-1
- Brief
- Block Diagram
- Schematic
- BOM

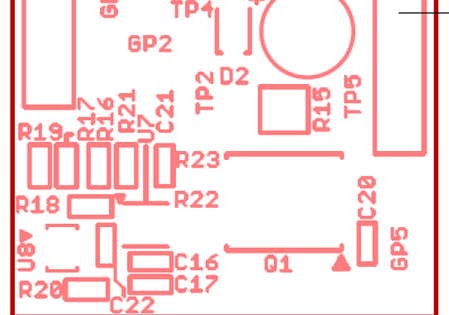

- Layout (PDF)
- Layout (CAD Data)
- REFLD002-2
- Brief
- Block Diagram
- Schematic
- BOM
- Layout (PDF)
- Layout (CAD Data)
Specifications
| Board Number | Input volatage (Laser Diode Drive) | Input volatage (Gate Driver) | Laser power | Switching Frequency | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| REFLD002-1 | ~60 V | 5V | 905nm, 120W | 0.1 to 0.5kHz | |||||||||||
| REFLD002-2 | ~120 V | 5V | 905nm, 75W | 0.1 to 100kHz |
Distribution Inventory
| Board Number | Distributor | Quantity Available |
|---|
Key Components
| Board Number | Part Number | Product Category | Datasheet | Status | SPICE | LTspice® ? | Thermal Model | Symbol & Footprint | 3D STEP | Samacsys ECAD Library | Calc Tool | ROHM Solution Simulator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| REFLD002-1 | LTR100JZPFL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR100JZPJL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR100LJZPFS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR100LJZPFU | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR100LJZPJS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR100LJZPJU | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR10LEZPDL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR10LEZPFS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR10LEZPJL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | LTR10LEZPJS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | RLD90QZW8 | High Output Laser Diodes | - | Under Development | - | Solution Simulator | ||||||
| REFLD002-1 | GNE1040TB | GaN HEMT | - | Recommended | - | |||||||
| REFLD002-1 | BD2311NVX-LB | Gate Drivers | - | Recommended | - | |||||||
| REFLD002-1 | RF05VAM2S | Fast Recovery Diodes | - | Recommended | - | - | - | - | - | |||
| REFLD002-1 | LTR10LEZPFL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-1 | BD2311NVX-C | Gate Drivers | - | Recommended | - | |||||||
| REFLD002-2 | BU21077MUV | Capacitive Switch Control ICs | - | Last Time Buy | - | - | ||||||
| REFLD002-2 | RLD90QZW3 | High Output Laser Diodes | - | Recommended | - | Solution Simulator | ||||||
| REFLD002-2 | LTR100JZPFL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR100JZPJL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR100LJZPFS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR100LJZPFU | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR100LJZPJS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR100LJZPJU | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR10LEZPDL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR10LEZPFS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR10LEZPJL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | LTR10LEZPJS | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | RLD90QZW8 | High Output Laser Diodes | - | Under Development | - | Solution Simulator | ||||||
| REFLD002-2 | GNE1040TB | GaN HEMT | - | Recommended | - | |||||||
| REFLD002-2 | BD2311NVX-LB | Gate Drivers | - | Recommended | - | |||||||
| REFLD002-2 | RF05VAM2S | Fast Recovery Diodes | - | Recommended | - | - | - | - | - | |||
| REFLD002-2 | LTR10LEZPFL | Current Detection Resistors | - | Recommended | - | |||||||
| REFLD002-2 | BD2311NVX-C | Gate Drivers | - | Recommended | - |
